Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

CAUTION:

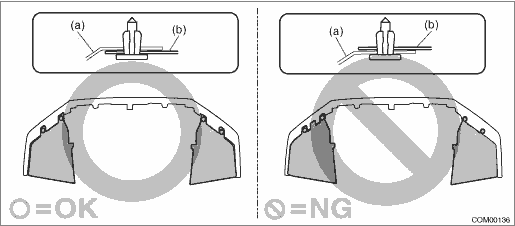

Install the mud guard - front so that the front end of the mud guard (b) comes outside the bumper face - front (a).

1. Install the access buzzer.

2. Connect the ground terminal to battery sensor. NOTE

Inspection
Using the Subaru Select Monitor, perform forced operation of the access buzzer. User Customizing > OPERATIONIf the buzzer does not sound, replace the access buzzer. ...

Access key
...
