Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Torque converter assembly / Removal

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

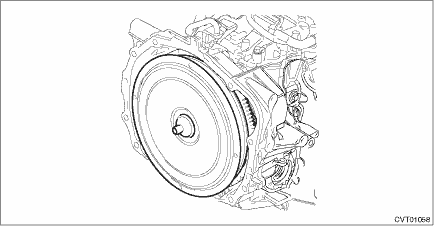

2. Pull out the torque converter assembly horizontally.

CAUTION:

Do not scratch the inside of engaging parts.

3. Remove the O-ring from the input shaft.

Inspection

• Check the protrusion of torque converter center (front boss) is not deformed or damaged.• Check the ring gear and exterior for break or damage. ...
