Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (heater ventilator and a c) / Blower motor / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

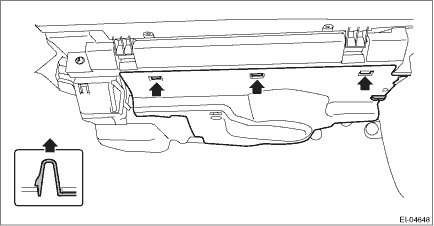

2. Release the hook, and remove the under cover assembly - passenger.

3. Remove the blower motor.

(1) Disconnect the connector.

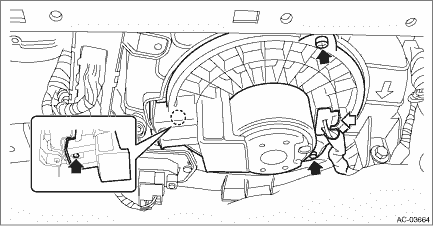

(2) Remove the screws and detach the blower motor.

Inspection

1. Check the motor operation when battery voltage is applied between the connector terminals.Terminal No.Inspection conditionsSpecification2 (+) — 1 (−)Apply battery voltage.Rotation2. If the ...
